Trailer-Mounted Message Signs
Trailer-mounted message signs are a key part of safety on the road when roadwork is going on. These signs display a clear, easy-to-read message to everybody on the road, letting them know that there’s roadwork or some other obstruction coming up. Because of the job they do, it is important for trailer-mounted message signs to have excellent clarity, which means bright lights that contrast with the sign itself.
There are several specific uses for trailer-mounted message signs. Sometimes, these signs are used to let people know they need to slow down for the upcoming changes in traffic. Trailer-mounted message signs can also be used to direct the flow of traffic to one side of the road to avoid an oncoming obstruction. These functions are all a critical part of making sure drivers are safe, particularly on the freeway.
PCMS-320 Trailer-Mounted Message Sign
The PCSM-320 is a full-matrix trailer-mounted message sign that is extremely versatile thanks to its compact size. The V-Touch controller and V-Sync Wi-Fi communication allow you to update the message on this sign remotely, which means nobody must go out in inclement weather to change the sign.
Dimensions and Weights
- Overall length: 150 in. (3815 mm)
- Overall width: 82 in. (2085 mm)
- Traveling height: 107 in. (2726 mm)
- Operating height: 183 in. (4653 mm)
- Axle/suspension: 3500 lbs. (1588 kg)
- Weight (approx.): 2070 lbs. (939 kg)
PCMS-548LE Trailer-Mounted Message Sign
This trailer-mounted message sign is a smart choice for use by law enforcement because it features a built-in radar and modem. The miniature size of this message sign makes it easy to use in tight spaces, while Wi-Fi capabilities mean you can change the message on the sign remotely.
Dimensions and Weights
- Overall length: 133 in. (3367 mm)
- Overall width: 70 in. (1788 mm)
- Traveling height: 91 in. (2308 mm)
- Operating height: 133 in. (3387 mm)
- Axle/suspension: 2000 lbs. (909 kg)
- Weight (approx.): 1255 lbs. (570 kg)
PCMS-548 Trailer-Mounted Message Sign
As far as efficiency goes, the PCMS-548 is among the best. This trailer-mounted message sign comes in a small size with a full-matrix display, but there are also two Tilt-and-Rotate solar panels that allow you to get the most sunlight to keep this sign powered up all day.
Dimensions and Weights
- Overall length: 131 in. (3338 mm)
- Overall width: 71 in. (1791 mm)
- Traveling height: 94 in. (2393 mm)
- Operating height: 164 in. (4162 mm)
- Axle/suspension: 2000 lbs. (909 kg)
- Weight (approx.): 1255 lbs. (570 kg)
PCMS-1210 Trailer Mounted Message Sign
Getting longer messages across can be difficult, but the PCMS-1210 trailer mounted message sign makes it easy with three lines and eight characters per line. Each character is a massive 18 inches, making it easy to read the messages on this board even at high speeds. Thanks to Wi-Fi connectivity, you can also update the message remotely.
Dimensions and Weights
- Overall length: 165 in. (4179 mm)
- Overall width: 183 in. (4637 mm)
- Traveling height: 106 in. (2690 mm)
- Operating height: 87 in. (2197 mm)
- Axle/suspension: 3500 lbs. (1588 kg)
- Weight (approx.): 1740 lbs. (790 kg)
PCMS-1500 Trailer Mounted Message Sign
If size isn’t a problem, the PCMS-1500 offers some of the most clearly displayed messages of any mounted message sign. This full-matrix message sign is like others, but it’s not designed in a compact size.
Dimensions and Weights
- Overall length: 165 in. (4179 mm)
- Overall width: 183 in. (4637 mm)
- Traveling height: 106 in. (2690 mm)
- Operating height: 87 in. (2197 mm)
- Axle/suspension: 3500 lbs. (1588 kg)
- Weight (approx.): 1740 lbs. (790 kg)

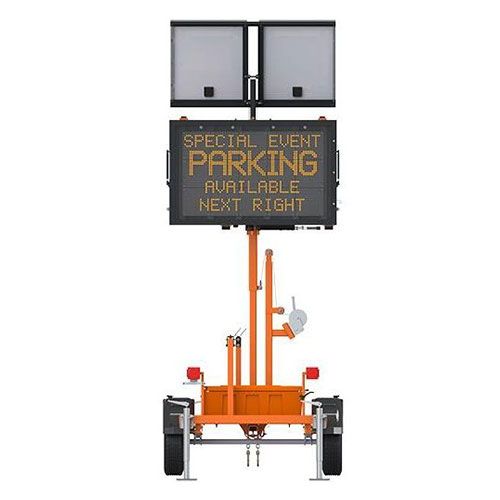

PCMS-4880 Trailer-Mounted Message Sign
The PCMS-4880 is a smaller message sign that’s excellent for events, school zones and urban areas. In fact, this is the most compact unit in the PCMS line, making it a popular choice for those who value versatility.
Dimensions and Weights
- Overall length: 105 in. (2671 mm)
- Overall width: 62 in. (1587 mm)
- Traveling height: 91 in. (2305 mm)
- Traveling length: 105 in. (2671 mm)
- Operating height: 158 in. (4013 mm)
- Axle/suspension: 2000 lbs. (909 kg)
- Weight (approx.): 1370 lbs. (628 kg)
V-Touch Controller
The V-Touch Controller allows you to change the message on signs remotely, which saves you time and money. You can use this controller to monitor the current message on multiple signs, and quickly change the message with a few taps on a keyboard.
Does Worksafe Offer Trailer-Mounted Message Sign Rentals?
Worksafe knows how important traffic safety is, so we are proud to offer trailer-mounted message sign rentals. From law enforcement use to private events and businesses, these message signs make it easier to control the flow of traffic and keep everybody safe.
Contact Worksafe Traffic Control Industries
Whether it is for an event or a school zone, Worksafe Traffic Control Industries has the signs you need to keep things under control. To find out more about our trailer-mounted message signs and how you can rent one, contact us today at (802) 223-8948 or fill out the form below.
